30018ET3GKD580Z-W22

30018ET3GKD580Z-W22

Alt: Crusher Duty

$29,334.00

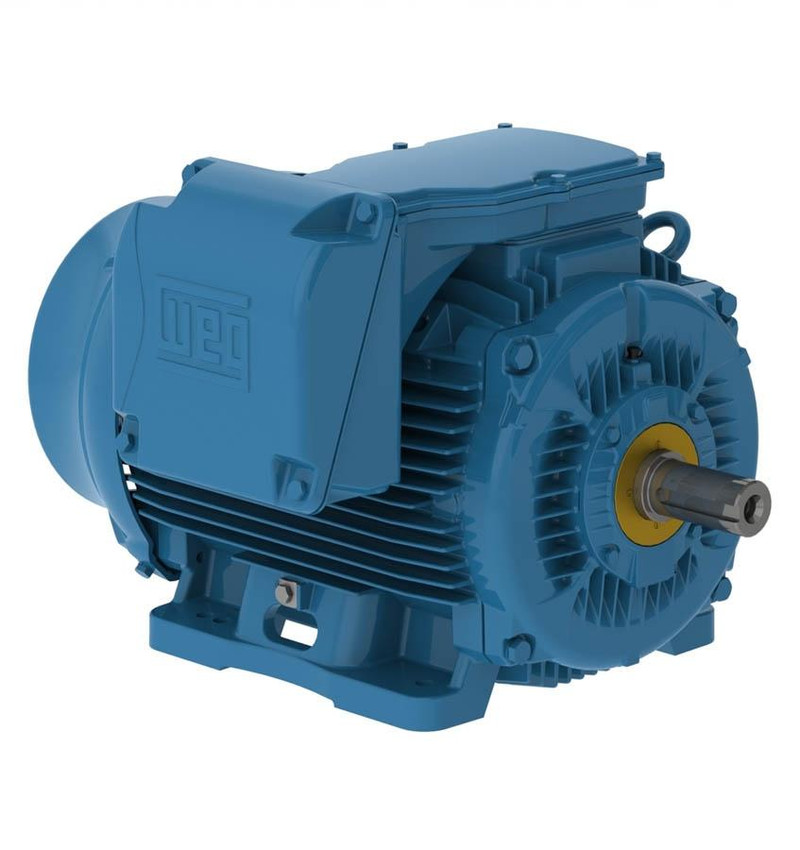

Motor, 300hp, 1800rpm, 3 Phase, 460V, 586/7Z, Severe Duty, Crusher Duty, TEFC Foot Mount

Minimum Purchase:
1 unit
Adding to cart… The item has been added
Please note that motors do not qualify for free shipping.
Description

Weg's Crusher Duty motors are designed for your most demanding crusher applications!

  • Three phase
  • TEFC-NEMA Premium
  • Mount horizontally or vertically
  • Exceptional high starting and breakdown torques
  • W22 cast iron platform
  • Superior cooling system and solid feet for cool operation and low vibration and noise
  • Oversized roller bearings

Need a crusher duty soft starter? Search Weg's TPH2 series now!

Features Include:

Output Rating:

  • 300 HP (220 kW)

Rated Voltage:

  • 460 V

Rated Current:

  • 350 A

Synchronous Speed:

  • 1800 rpm

Rated Speed:

  • 1791 rpm

Rated Torque:

  • 868 ft.lb

Number of Poles: 4

Frequency: 60 Hz

No-Load Current: 130 A

Starting Method:

  • Direct On Line

Mounting:

  • Foot-Mounted, F-1

Enclosure:

  • IC411 - TEFC

Frame: 586/7TZ

Frame Material: Cast Iron
