Weg
02036ET3E256TC-W22

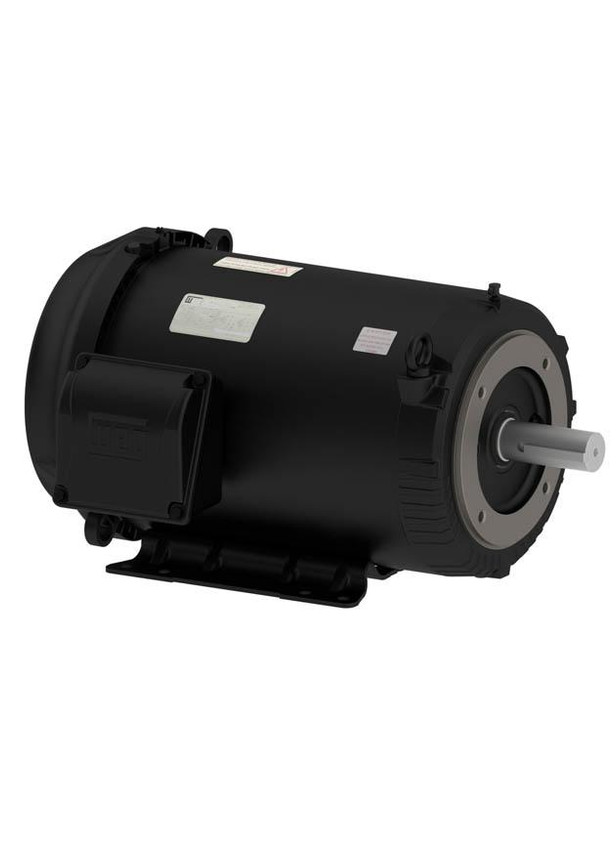

Motor, 20hp, 3600rpm, 3 Phase, 208-230/460V, 254/6TC, NEMA Premium Efficiency TEFC, Footed/C Face, Heavy Duty
$1,838.25
02036ET3E256TC-S
Alt: Was 13202802, Now 14122241
$1,602.00
Motor, 20hp, 3600rpm, 3 Phase, 208-230/460V, 254/6TC, NEMA Premium Efficiency TEFC, Footed/C Face, Rolled Steel
- Minimum Purchase:
- 1 unit
Description
Motor, 3 Phase, 20hp, 3600rpm, C-Face, Foot Mnt, Rolled Steel, 208-230/460V, 256TC Frame,
Product Features:
Frame
- 254/6TC
Rated Voltage
- 208-230/460 V
Frequency
- 60 Hz
Rated Speed
- 3515 rpm
No Load Current
- 6.88-13.8/6.88 A
Rated Current
- 50.2-45.4/22.7 A
Rated Torque
- 39.5 ft.lb
Frame Material
- Rolled Steel
Approx. Weight
- 235 lb
