02012ET3H286T-W22

02012ET3H286T-W22

Alt: 11441520

$2,971.50

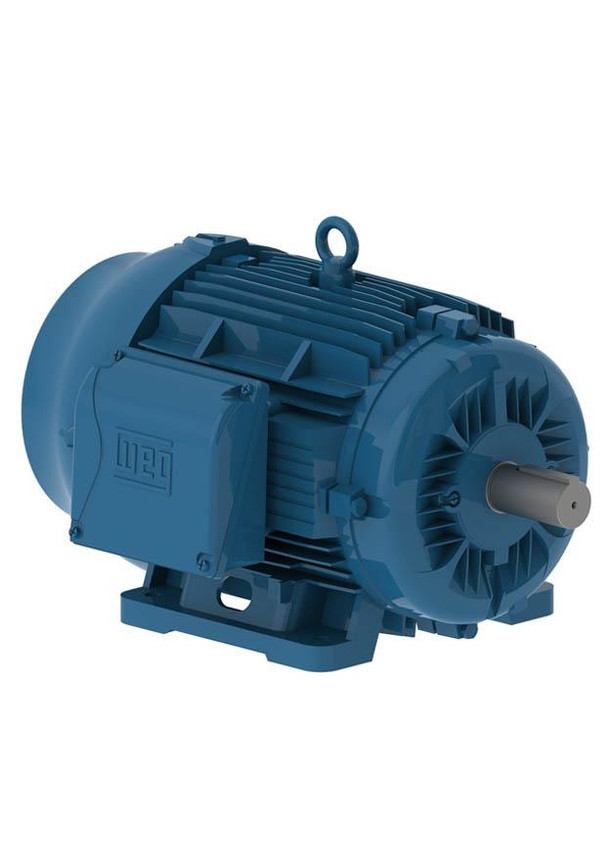

Motor, 20hp, 1200rpm, 3 Phase, 575V, 284/6T, NEMA Premium Efficiency TEFC, Footed/No Flange, Heavy Duty

Minimum Purchase:
1 unit
Adding to cart… The item has been added
Please note that motors do not qualify for free shipping.
Description

Please note that motors do not qualify for free shipping.

Severe duty is standard with WEG W22 motors!

  • All WEG W22 motors are Totally Enclosed Fan Cooled with a true IP55 rating against dust and moisture.
  • Other IP ratings are available as well
  • All NEMA Premium ratings have a 1.25 service factor (up to 100 HP) resulting in cooler operation and extended life of the motor
  • All Cast Iron Construction, including Terminal Box and Fan Cover
  • Solid feet for reduced vibration levels and impact absortion
  • Optimized ventilation system for cooler operation and extended life
  • High Grade FC200 cast iron provides superior mechanical strength and heat dissipation
  • Exclusive W-Seal 364T and larger provides superior bearing protection
  • Taconite Labyrinth seal 586 Frame and larger
  • Exclusive WEG painting system exceed 200hrs ASTM 117 corrosion test (Exceeds IEEE841 standard)
  • Balanced to 0.08 inches per second vibration limits (Meets IEEE841 standard)
  • Four Bolt Conduit Cover with glued Neoprene Gasket
  • Impregnation Resin and magnet wire are insulation class H
  • Stainless Steel Nameplate - Laser edged with high contrast background
  • Corrosion Proof Drains g Inverter Duty per NEMA MG1, Part 31
  • Certified Class I Div 2, Groups A, B, C & D; Class II, Div 2, Groups F & G

Product Features:

Frame

  • 284/6T

Rated Voltage

  • 575 V

Frequency

  • 60 Hz

Rated Speed

  • 1175 rpm

No Load Current

  • 7.60 A

Rated Current

  • 19.4 A

Rated Torque

  • 88.2 ft.lb

Frame Material

  • Cast Iron

Approx. Weight

  • 417 lb
