NP0104

NP0104

$725.68

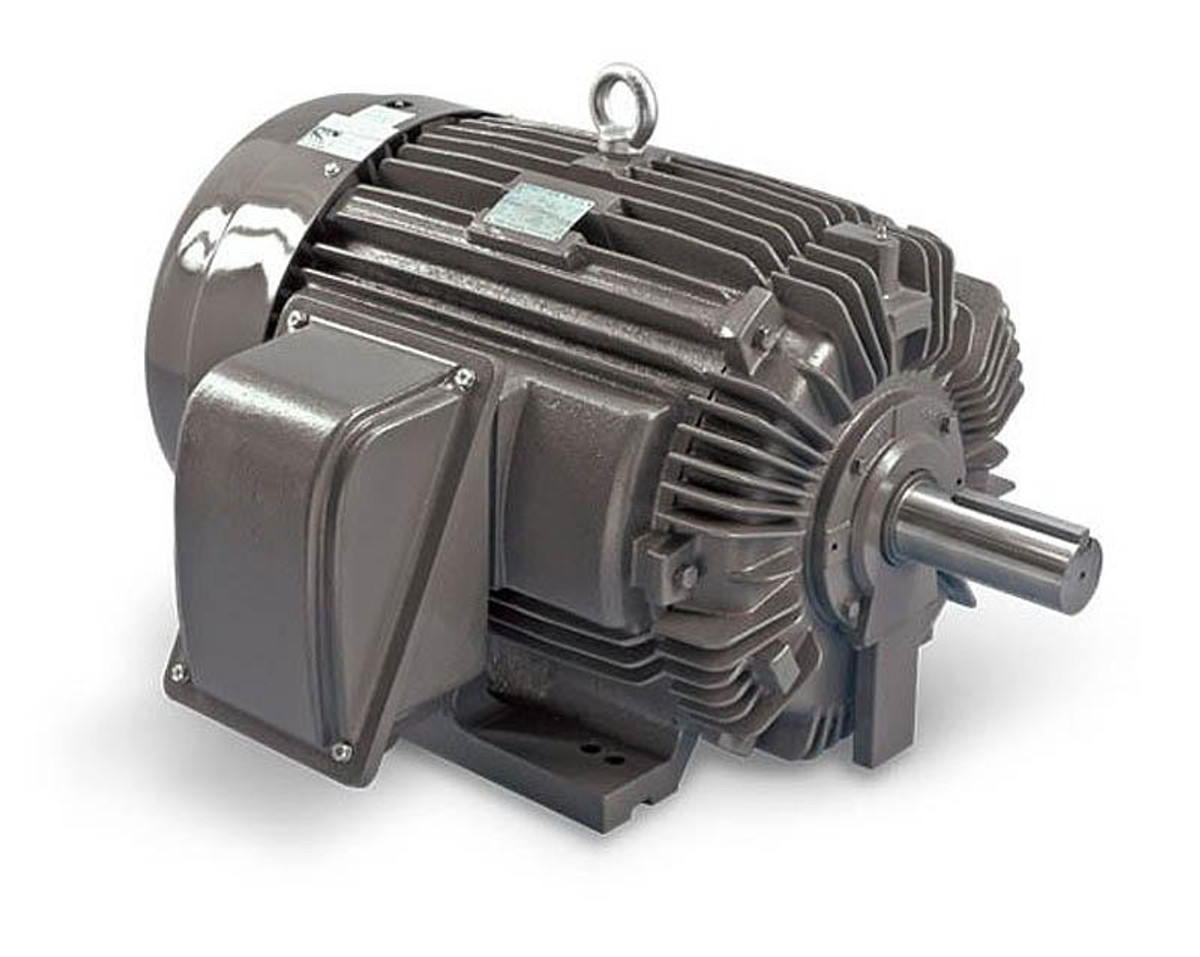

Motor, 10hp, 1800rpm, 215T Frame, Footed, NEMA Premium Efficiency, 11.6 FLA, 208/230/460V

Minimum Purchase:
1 unit
Adding to cart… The item has been added
Please note that motors do not qualify for free shipping.
Description

Our TECO MAX-PE series of motors are TEFC (totally enclosed fan cooled), T-frame squirrel-cage induction motors that meet or exceed the latest NEMA, IEEE and CSA standards!

  • Available from 1 HP - 200 HP, footed, footed C-face and round body C-flange
  • Rugged cast iron frame and end brackets for rigidity and excellent corrosion resistance
  • Motors are dual nameplated for 60 Hz (230/460V) and 50 Hz (190/380V) frequencies; 1.0 S.F. at 50 Hz.
  • NEMA Design B
  • Rolled steel fan cover
  • 36 month warranty from date of manufacture
  • Speed ranges 20:1 VT, 10:1 CT
  • 9 leads for 5 HP and below, 12 leads for 7.5 - 125 HP, and 6 leads for 150 HP and higher.

Series Features Include:

  • Motors are dual nameplated for 60 Hz (230/460V) and 50 Hz (190/380V) frequencies; 1.0 S.F. at 50 Hz.
  • NEMA Design B
  • UL recognized, Class F non-hygroscopic insulation system with heavy heat resistance enameled copper
    wire to provide longer winding life and reliability. Inverter rated; see below.
  • Continuous rating with 1.15 Service Factor (1.00 Service Factor at 50 Hz)
  • Design B torques as a minimum
  • Class B temperature rise @ 40°C ambient
  • Interchangeable F1 and F2 mounting
  • Dual drilled feet - longer frame (i.e. 145T drilled also for 143T through 449T frame)
  • Bi-directional rotation
  • Dynamically balanced, die-cast aluminum rotor reduces overall system vibrations
  • Pressed steel main conduit box is 90° rotatable, oversized and fully gasketed
  • Neoprene lead and conduit box gaskets prevent the entry of moisture and contaminants
  • Grounding terminal inside main box
  • Rugged cast iron frame and end brackets for rigidity and excellent corrosion resistance
  • Provisions for breather drains for vertical mount up or down as standard
  • Rolled steel fan cover
  • External fan is corrosion-resistant and also non-sparking
  • Stainless steel nameplate; Zn plated hardware
  • C-face (143T-449T) and D-flange (143-184 & 254T-449T) conversion kits are available
  • Oversized, double shielded vacuum degassed ball bearings are for frames 140T-280T and open bearings with regreaseable provisions are for frames 280TS, 320T and larger.
  • Rubber flinger provided on DE for frames 140T to 280T
  • Labyrinth type metal flinger on both ends on frames 280TS, 320T and larger
  • Suitable for Class I, Division II, Groups B, C, and D; Temperature Code T3C
  • UL recognized, DOE certified, CSA approved, CE Marked, and EISA compliant
  • Inverter rated per NEMA MG 1, Part 31
  • S. F. will be 1.0 when applied on inverter
  • Suitable for inverter use per NEMA MG-1, Part 3.4.4.2
  • Inverter duty wire capable of withstanding voltage spikes up to 2200V
  • Insulated bearings are available as an option. If not purchased, precautions should be taken to eliminate shaft currents that may be imposed on the motor by use with an inverter.
  • Speed ranges 20:1 VT, 10:1 CT
  • 9 leads for 5 HP and below, 12 leads for 7.5 - 125 HP, and 6 leads for 150 HP and higher.
