DPC01DM48

DPC01DM48

$194.65

Monitoring Relay, TRMS 3P Over/Under, 50-60Hz, 2xSPDT, 380-415VAC, DIN Rail Mount

Minimum Purchase:
1 unit
Adding to cart… The item has been added
If you do not see the green 'in stock' circle on this item, Carlo Gavazzi is quoting 12 to 14 weeks for new orders (items may arrive sooner from our existing stock orders). We are happy to offer similar items with shorter lead times or from stock!
Description
Monitoring Relay, TRMS 3P Over/Under, 50-60Hz, 2xSPDT, 380-415VAC, DIN-Rail Mount

Features Include:

  • TRMS 3-phase over and under voltage, phase sequence, phase loss, asymmetry and tolerance monitoring relay
  • Detect when all 3 phases are present and have the correct sequence
  • Detect if all the 3-phase-phase or phase-neutral voltages are within the set limits
  • Detect if asymmetry and tolerance are within the set value
  • Separately adjustable setpoints
  • Separately adjustable delay functions (0.1 to 30 s)
  • Output: 2 x 8 A relay SPDT NE
  • For mounting on DIN-rail in accordance with DIN/EN 50 022 (DPC01) or plug-in module (PPC01)

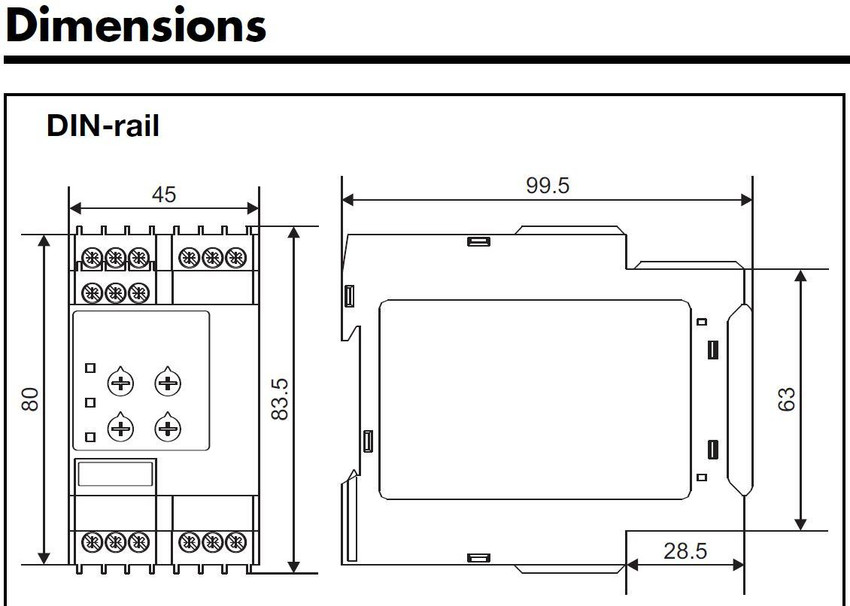

  • 45 mm Euronorm housing (DPC01) or 36 mm plug-in module (PPC01)
  • LED indication for relays, alarm and power supply ON
