Available Now! PUA01CB23500V
PUA01CB23500V
Available Now! (4 in stock)
Carlo Gavazzi

PUA01CB23500V

$130.05

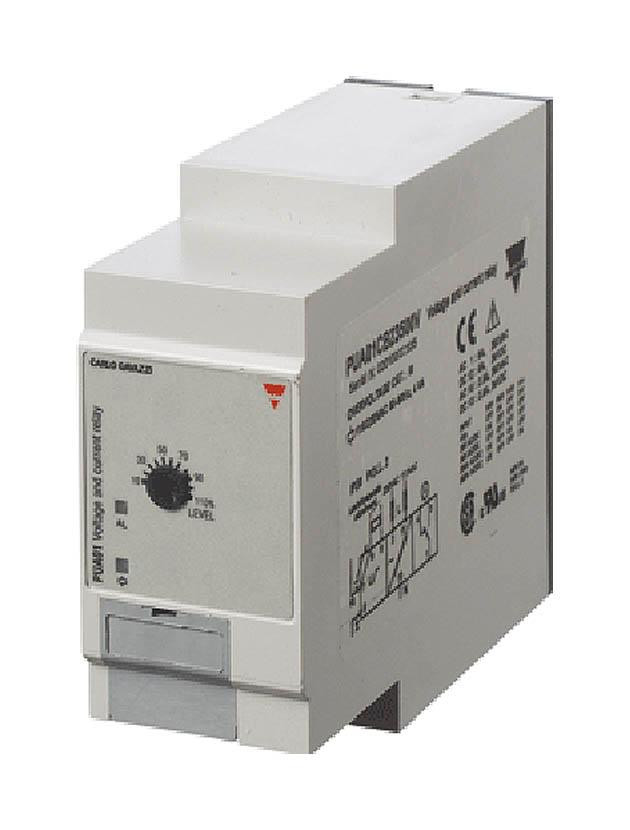

Monitoring Relay, 115/230 VAC Supply, Plug In, SPDT, Over Voltage Monitoring Relay, Single Phase

Minimum Purchase:
1 unit
Adding to cart… The item has been added
If you do not see the green 'in stock' circle on this item, Carlo Gavazzi is quoting 12 to 14 weeks for new orders (items may arrive sooner from our existing stock orders). We are happy to offer similar items with shorter lead times or from stock!
PUA01CB23500V
PUA01CB23500V
Description

This is a over voltage monitoring relay that can also be used as a single or three phase over current monitoring relay when connected with MI or MP current transformers.

Features Include:

  • AC/DC over voltage monitoring relay
  • Selection of measuring range by DIP-switches
  • Measuring ranges: 2 to 20 VAC/DC, 5 to 50 VAC/DC, 20 to 200 VAC/DC, 50 to 500 VAC/DC, 0.4 to 4 Vp AC
  • Adjustable voltage limit on relative scale
  • Adjustable hysteresis
  • Programmable latching at set level
  • Output: 8 A SPDT relay normally de-energized
  • For mounting on DIN-rail in accordance with DIN/EN 50 022 (DUA01) or plug-in module (PUA01)
  • 22.5 mm Euronorm housing (DUA01) or 36 mm plug-in module (PUA01)
  • LED indication for relay and power supply ON
  • Galvanically separated power supply
