MK V11D10

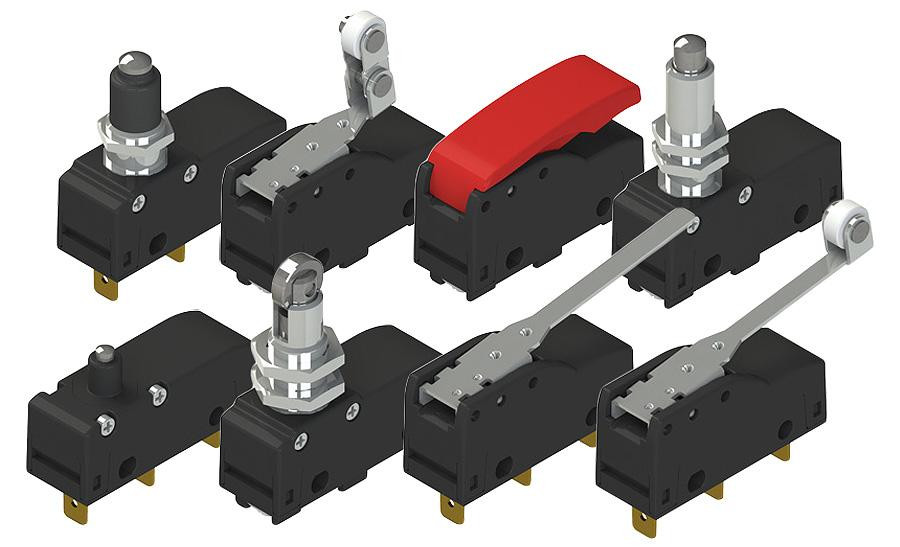

Series Features Include:

• Glass fiber reinforced technopolymer, self-extinguishing and shock-proof housing
• Protection degree IP00 (without terminal cover), IP20 (with terminal covers VF C01, VF C03), IP40 (with terminal covers VF MKCx1x, VF C02) or IP65 (with terminal covers VF MKCx22 + MK Vx2xxx or VF MKCx23 + MK Hx2xxx)
• 4 terminal types available (MK V: screw with self-lifting plate, MK H: vertical faston, MK F: faston, 45° bend to the right, MK G: faston, 45° bend to the left (on request)
• 52 actuators available
• Versions with positive opening
• Versions with gold-plated silver contacts
• Terminal covers with strain relief cable gland
• Thermal current (Ith): 16 A
• Rated insulation voltage (Ui): 250 VAC 300 VDC
• Rated impulse withstand voltage (Uimp): 4 kV
