Dart Controls
-

DM8000-P

Alternate Part Number:
4-in-1 Programmable
$291.00
In stock

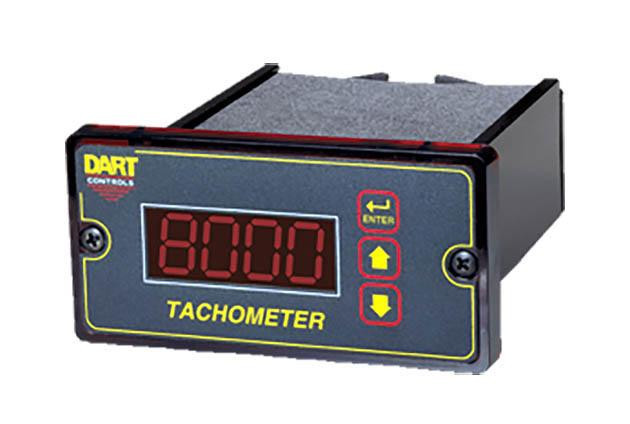

Digital Tachometer, 1/8 DIN, 120/240VAC In,50/60Hz, 2.5x4.75x8", Field Programmable, Capable of Measuring Shaft Speeds Lower than 1RPM, Four Devices in One; Tachometer, Counter, Totalizer and Zero Speed Switch, with Pluggable Terminal Strip

Field programmable digital tachometer for shaft speed as low as 1 RPM, microprocessor based. Accuracy + 0.4%; 1/8 DIN housing 1/2″ digital display. Operating range 500 to 30,000 input pulses per minute. Faceplate gasket kit gives a NEMA 4X rating when installed in similarly rated enclosure.  5Amp form C relay output. Can display rate, RPM,Time, Count, and Total. Universal power supply – One model for both 120VAC and 240VAC input.

More Information
Part Number DM8000-P
SKU DM8000-P
Alternate Part Number 4-in-1 Programmable
Voltage 110/120VAC
Manufacturer Dart Controls
Availability Please Contact Us
Weight - lbs. 1.275500
Base Unit of Measure Each
2021-10-01 02:24:41
