LA6-5DSNWB-POE

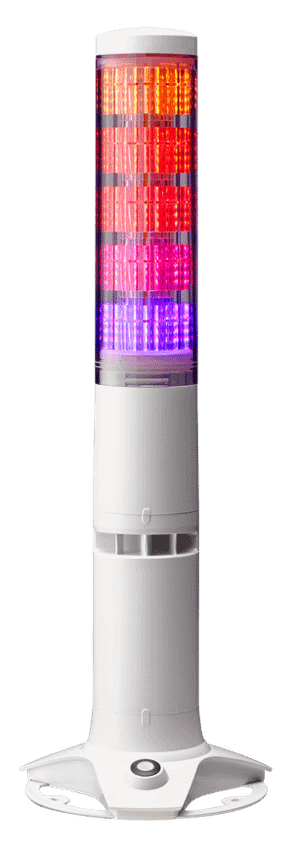

Our Patlite LA6-POE is a 60mm smart signal tower with PoE that is available in direct mount (LA6-5DTNWB-POE) or stationary/desktop type (LA6-5DSNWB-POE).

This light tower is Ethernet-enabled with PoE capability and is field programmable for any application!

This tower is packed with options and features 21 LED colors, 11 sounds, socket, Ethernet and Modbus/TCP.

Marshall Wolf Automation is your authorized Patlite distributor.

Features Include:

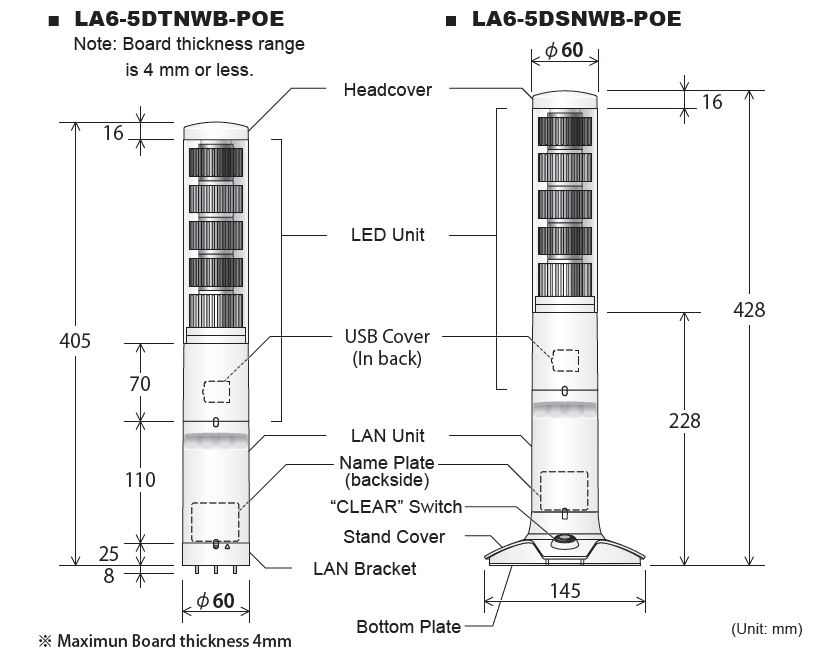

Dimensions

• 60mm Diameter

Operating Voltages

• 24V DC Power over Ethernet (PoE): 48V DC

Function Method

• Operational Method: Signal Wire Control or Command Control

Body Color

• Off-white or silver

Stackable Tiers

• 5 Tiers or 3 Tiers

Module Colors

• Signal Tower Mode: 9 Colors
• Smart Mode: 21 Colors

Audible Style

• 11 alarm sounds available

Conformity Standards

• EMC Directive
• RoHS Directive
• UL 508
• FCC
• KC

Technical Information:

• Patlite LA6-POE Series Signal Tower Short Form Instruction Manual
• Patlite LA6-POE Series Signal Tower Wiring Diagram
• Patlite LA6-POE Series Signal Tower Complete Operation Manual
• Patlite LA6-POE Series Signal Tower Direct Mount Specifications
• Patlite LA6-POE Series Signal Tower Stationary Mount Specifications
• Patlite Signaling Product General Catalog
