Available Now! LR5-302LJNW-RYG
Available Now! (4 in stock)

LR5-302LJNW-RYG

$124.10

Light Tower, Ø50mm, LED, DC24V, No Flashing/Buzzer, Pole Mount/Cable, Off-White Body, IP65, UL CE

Minimum Purchase:
1 unit
Adding to cart… The item has been added
Description

 Our Patlite LR series is available in four diameters; 40, 50, 60 or 70mm.

  • LR4 Series - 40mm, 24VDC or 100-240vAC
  • LR5 Series - 50mm, 12VDC or 24VDC
    • Also available with manual control switch box (HSST-3M2)
  • LR6 Series - 60mm, 24VDC or 100-240VAC
    • Multi-color LED module available, 7 colors in one (LR6-E-MZ)
    • Available with M12 connector, 1/2" NPT or 30mm through-hole mounting option
  • LR7 Series - 70mm, 24VDC only

All LR light towers offer:

  • Ultra-bright LEDs - brilliant, even light
  • IP65 (IEC 60529), NEMA 4X, 13, indoor use

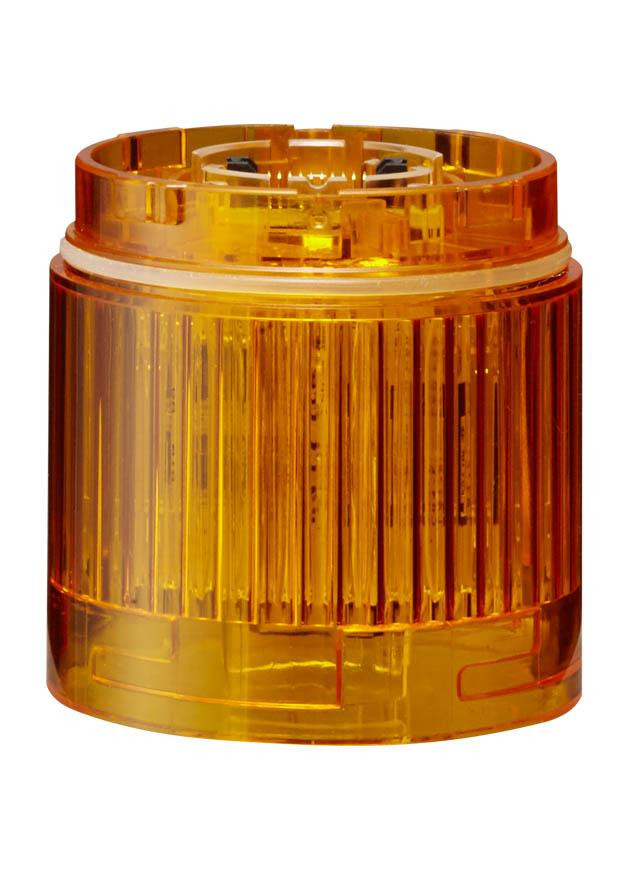

  • Modular twist and lock design, easily customize and field configure LED units and sound modules
  • Completely enclosed optional sound module maintains substantial water and dust protection, 360° sound!
  • Sleek, smooth and rugged housing

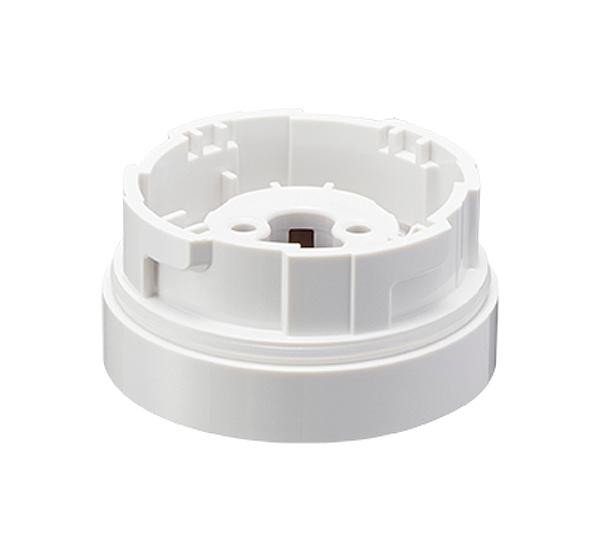

  • Four mounting options - direct, pole with L-bracket, pole with circular bracket, pole with folding pracket (off-white only)
  • Available in off-white or silver bodies
  • NPN/PNP transistor output (AC100-240V is NPN only)
  • Operating ambient temperature -20°C to 50°C
  • 2 year warranty
  • The LR series replaced LCE-A, LCS-A, LE, LES, LU5, LME, LMS, LME and LU7 series

Patlite introduces their WD Wireless Data Series!

Modernize your workplace with Patlite's WD wireless data acquisition system - receive real time sttatus alerts straight from the factory floor to any computer!

The system consists of a Patlte light tower + transmitter (see below) which will send information to the receiver (WDR-LE-Z2-PRO):

  • For the LR4 series - use wireless data transmitter WDT-4LR-Z2, will also need receiver WDR-LE-Z2-PRO
  • For the LR5 series - use wireless data transmitter WDT-5LR-Z1, will also need receiver WDR-LE-Z2-PRO
  • Two options for the LR6 series:
    • use WDT-6LR-Z1, will also need receiver WDR-LE-Z2-PRO
    • or use WDT-6LR-Z1-PRO - will also need receiver WDR-LE-Z2-PRO and WDB-D80S-PRO base

Product Features:

Operating Temperature

  • -20 °C TO +50° C

Operating Humidity Range

  • 90% RH or less, no condensation

Mounting Location

  • Indoor Use

Sound Level

  • Typ. 85dB
