SSXU20-T240

SSXU20-T240

$649.98

Light Curtain, Ultra-thin, Thru-Beam, 240mm Detection Width, w/3m Cable, IP65, NPN/PNP Selectable

Minimum Purchase:
1 unit
Adding to cart… The item has been added
Ultra compact light curtain sensor, Light ON activated!
Description

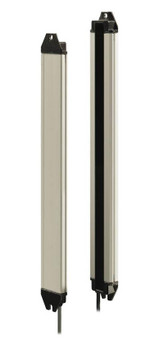

The SSXU20 series is an ultra compact light curtain sensor - the profile is only 9.9mm deep by 30mm across!

Other features:

  • Through-beam detection
  • Switchable between parallel beam and cross beam modes
  • Detecting distance is 0-4m parallel, 0.5-4m cross
  • 20mm light axis interval
  • Available in 9, 13, 17, 21, 25, 29, 33 and 37 beams
  • Light ON activated when beams are received, deactivated when a beam of any optical axis is blocked
  • NPN and PNP output selectable
  • CE, IP65

Marshall Wolf Automation is your authorized TAKEX distributor!

Features Include:

  • Improved versatility while maintaining slim profile

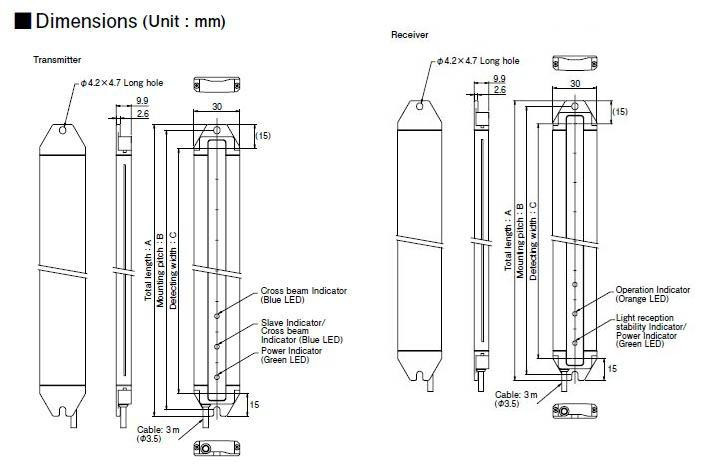

  • Ultra-thin light curtain sensor of only 9.9 mm in thickness
  • Switchable between parallel beam and cross beam modes
  • NPN or PNP output selectable
  • Eight selections of detection width from 160 mm to 720 mm
