SSC-T805
Alt: This is a Set, Includes Transmitter and Receiver.
$456.37

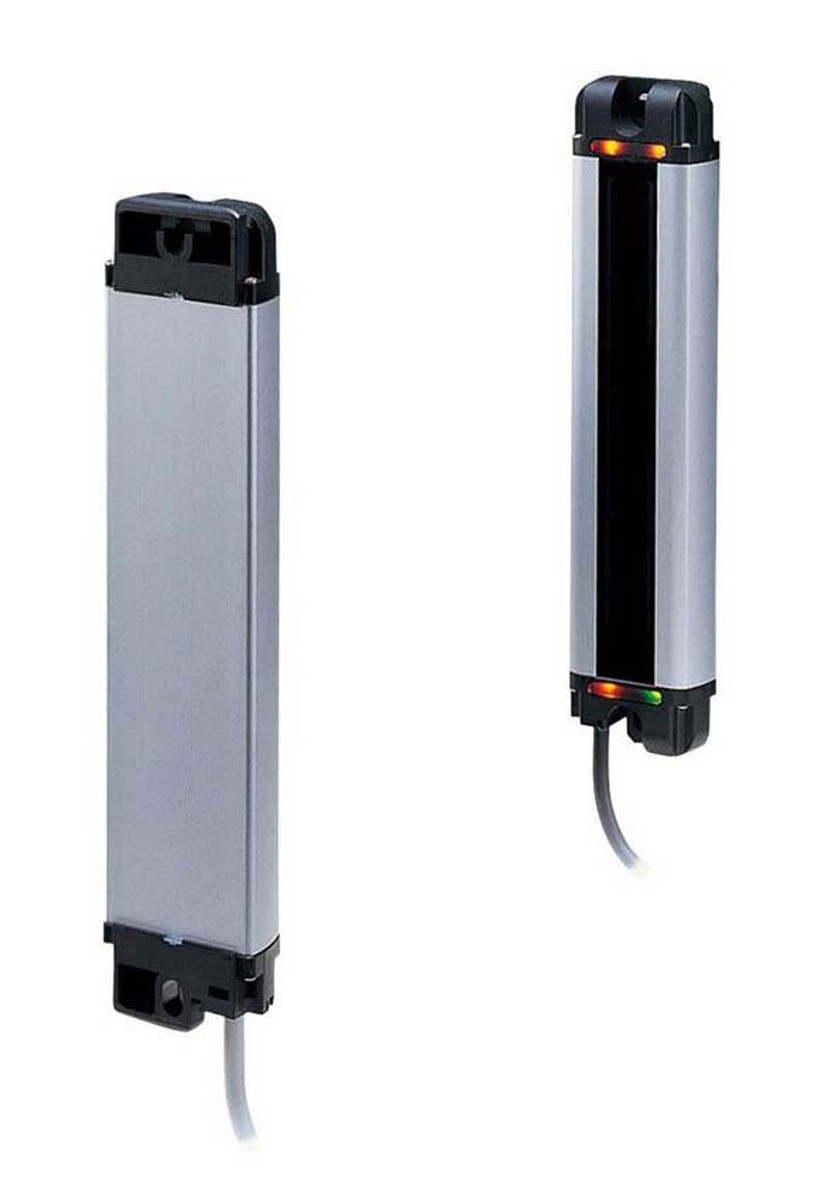

Light Curtain, Thru-Beam, 100-500mm, 5 Light Axes, 500mm Width, Opaque Object
- Minimum Purchase:
- 1 unit
Description
Light Curtain Sensor, Through-beam, 100-500mm 5 light axes, 500mm width, Opaque object
Features Include:
- Detection Method: Through beam
- Detection Distance: 150-500mm
- Detection Object: Opaque dia.12.5 mm or more
- Number of Light Axis: 5
- Detecting Width: 50mm
- Optical Axis Interval: 12.5mm
- Power Supply: 12 - 24V DC ±10% / Ripple 10% or less
- Output Mode: NPN open collector Rating: sink current 100 mA (30 VDC or less)
- Operation Mode: Activated when light beams of all axes are received (deactivated when light beam of any axis is blocked)
- Response Time Light blocking :5ms or less Light reception 8ms or less
- Light source (light wavelength): Infrared LED (870nm) Material: Case body: Aluminum / Caps at ends: glass fiber filled PBT / Front cover : Acrylic
- Weight: Approx. 130 g (transmitter/receiver)
Current Consumption:
- Transmitter: 50mA or less
- Receiver: 65mA or less
Indicator:
- Transmitter: Power indicator (Green LED)
- Receiver: Power indicator (Green LED) / Operation indicator ( Orange LED)
Connection:
- Attached cable (dia.4 mm) 3 m
- Cable: 0.3 mm2 x 2 cores, gray (transmitter) or 0.3 mm2 x 3 cores, black (receiver)
Environmental Specifications:
- Ambient Light: 5,000 lx or less
- Ambient Temperature: –10 - +55C° (non-freezing)
- Ambient Humidity: 35 - 85%RH (non-condensing)
- Vibration: 10-55 Hz / 1.5 mm double amplitude / 2 hours each in 3 directions
- Shock: 500 m/s2 / Twice each in 3 directions
- Dielectric withstanding: 500 VAC for 1 minute
- Insulation resistance: 500 VDC, 20 MΩ or higher
