IRT/C.01-K-440F/220C

IRT/C.01-K-440F/220C

Alt: 114124

$195.50

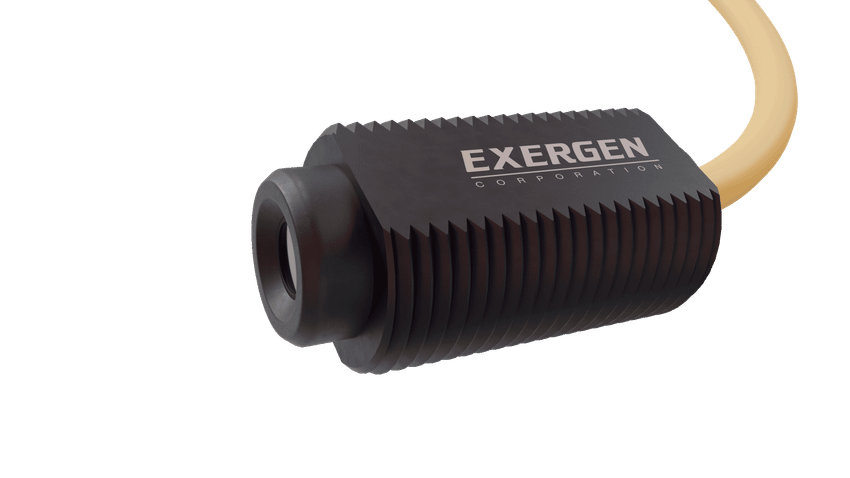

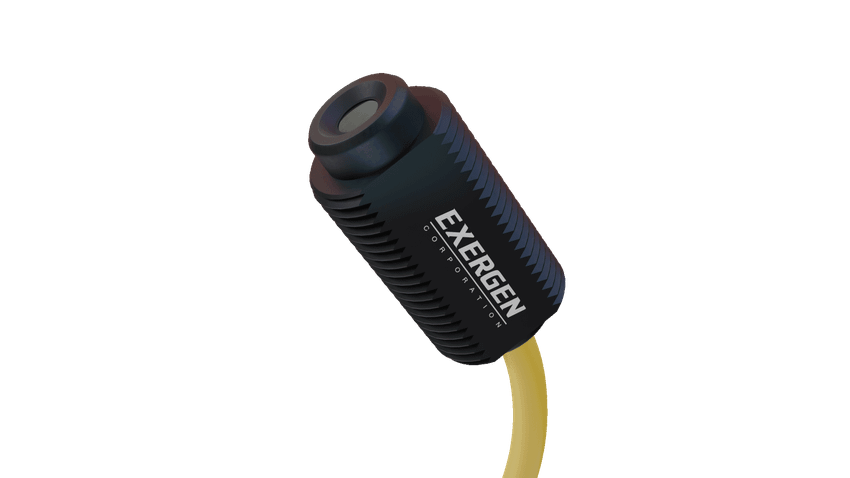

Infrared T/C, K Type, ABS, 1:1 FOV, 440°F/220°C, Linear from 320-500°F, Unshielded, Light Duty with Nylon Locknuts

Minimum Purchase:
1 unit
Adding to cart… The item has been added
Description

Features Include:

  • Temperature Range: -50 to 550 °F (-45 to 287 °C)
  • Ambient Temperature Range: 0 to 160 °F (-18 to 70 °C)
  • Field of View: 1:1 (53° approximately)
  • Minimum Spot Size: 0.3" (8 mm)
  • Spectral Response: 6.5 to 14 µ
  • Output Impedance: 3 Kohms approximately
  • Cable: Thermocouple extension grade, PVC jacket, unshielded
  • Housing: High strength ABS, hermetically sealed, exceeds NEMA 4, 4x; IP65, 67, intrinsically safe. Two locknuts supplied
  • Dimensions: 1.28" x .71" Diameter (32.5 x 20 mm)
