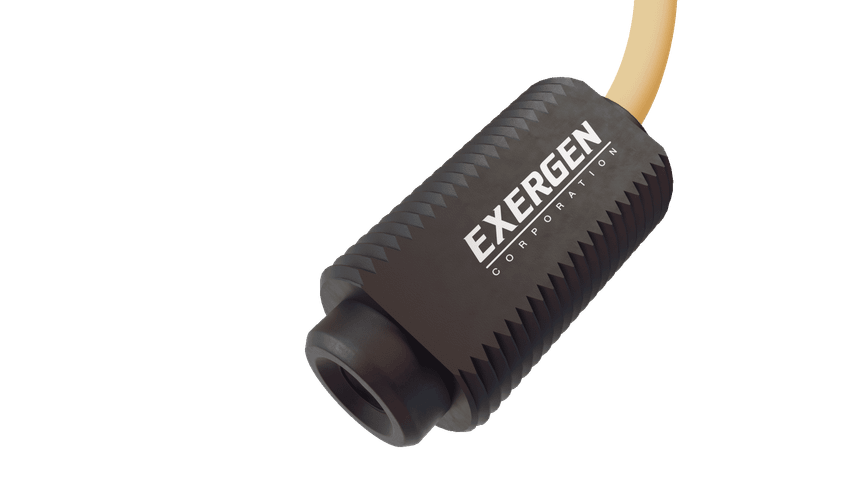

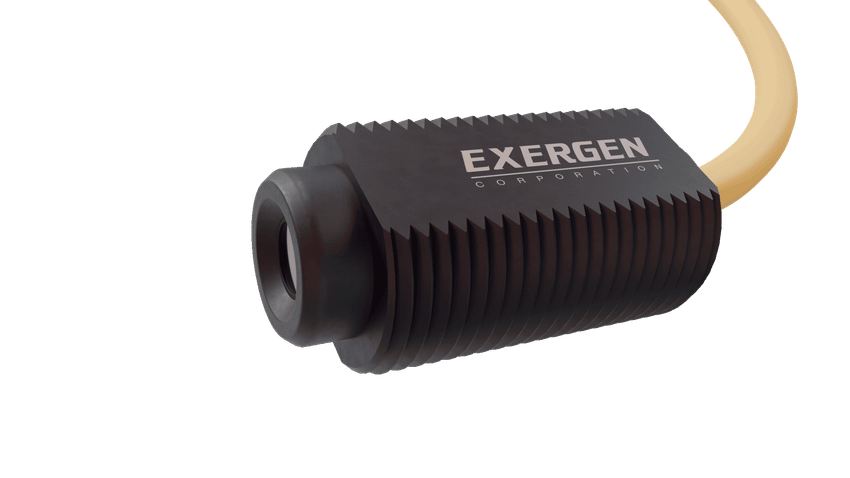

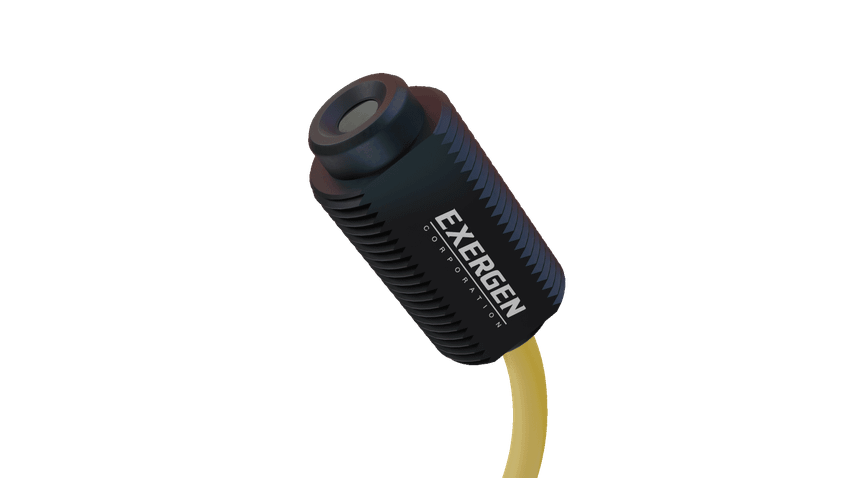

IRT/C.01-J-440F/220C

IRT/C.01-J-440F/220C

Alt: 114115M

$195.50

Infrared T/C, J Type, ABS, 1:1 FOV, 440°F/220°C, Linear from 320-500°F, Unshielded, Light Duty with Nylon Locknuts

Minimum Purchase:
1 unit
Adding to cart… The item has been added
Description

The world’s only self powered infrared thermocouple. Pre-calibrated IRt/c's are best for low temperatures (< 500 °F) and non-metal or coated metal surfaces.

No active electronics, so these passive devices can not fail.

Mean Time Between Failure reports have been documented with a rate of >1,000 years between failures. The patented technology separates the IRt/c from all other non -contact temperature products. Our Exergen sensors will minimize downtime and increase your production.

The IRt/c family of pre-calibrated IRt/c's includes:

  • Series (Short ID# begin with)
  • IRt/c.01 (1141)
  • IRt/c.03 (1142)
  • IRt/c.07 (138)
  • IRt/c.10 (115)
  • IRt/c.1X (110/111)
  • IRt/c.2 (117/118/119)
  • IRt/c.3SV (130)
  • IRt/c.3x (1185/1194)
  • IRt/c.5 (120/121/122)
  • IRt/c.SV (112/113/114)
  • IRt/c- (109/110/111)
  • microIRt/c (uIRt/c #'s - 150)

Learn even more about Exergen Sensors here!

Features Include:

  • Temperature Range: -50 to 550 °F (-45 to 287 °C)
  • Ambient Temperature Range: 0 to 160 °F (-18 to 70 °C)
  • Field of View: 1:1 (53° approximately)
  • Minimum Spot Size: 0.3" (8 mm)
  • Spectral Response: 6.5 to 14 µ
  • Output Impedance: 3 Kohms approximately
  • Cable: Thermocouple extension grade, PVC jacket, unshielded
  • Housing: High strength ABS, hermetically sealed, exceeds NEMA 4, 4x; IP65, 67, intrinsically safe. Two locknuts supplied
  • Dimensions: 1.28" x .71" Diameter (32.5 x 20 mm)
