Simpson Electric
-
50101
$463.75
In stock

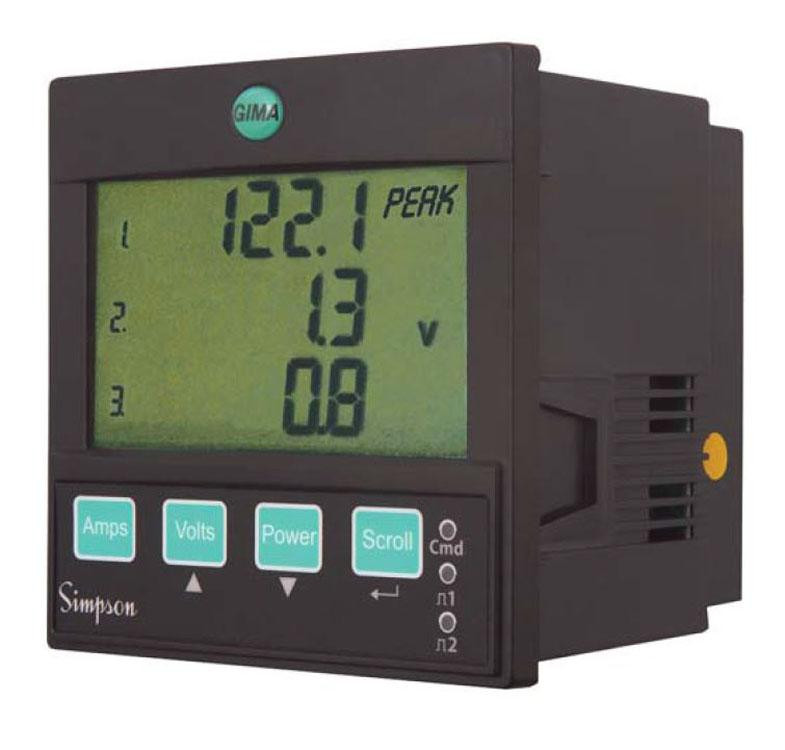

GIMA 400 MULTIFUNCTION 5AMP 230V W/MODBUS
| Part Number | 50101 |
|---|---|
| SKU | 50101 |
| Manufacturer | Simpson Electric |
| Meter Type | Panel Meter |
| Voltage | 220/240VAC |
| Analog/Digital | Digital |
| Amp Rating | 5 Amp |
| Availability | Please Contact Us |
| Weight - lbs. | 1.000000 |
| Base Unit of Measure | Each |
Series Features Include:
- System: 3-phase, 3 or 4 wire unbalanced load
- Voltage: 120/208, 120/240, 277/480, 63/110
- Measurement Range: 20% to 120%
- Current: 5 amp from external CTs Fully Isolated
- Measurement Range: 5% to 120%
- Operating Frequency: 45 to 65 Hz
- Harmonics: Up to the 30th harmonic
- Input Loading Voltage: Less than 0.1VA per phase
- Input Loading Current: Less than 0.1VA per phase
- Overload Voltage: x2 for 2 seconds max.
- Overload Current: x40 for .5 second max.
- Auxiliary Supply Standard: 115V±15% 45-65Hz
- Auxiliary Supply Optional: 230V±15% 45-65Hz
- Display: Custom backlit supertwist LCD 3 lines of .47”
- General: (12mm) digits plus .15” (3.8mm) legends
- Bezel: 3.79” x 3.79” (w/ .29” lip)
- Depth: 3.35”
- Panel Cutout: 3.62” x 3.62”
