Mersen
ATDR5-6/10
Fuse, Amp-Trap, Class CC, Motor Duty, 600V, 5-6/10A, IEC Type 2, 10 per Pack (Price per Piece), Must be purchased in multiples of 10
$20.76
Available Now!
Available Now!
(10 in stock)
ATDR5
Alt: Reference No. K218302
$20.76
Fuse, Amp-Trap, Class CC, Motor Duty, 600V, 5A, IEC Type 2, Minimum Order of 10 (per Pack), Price per Piece
- Minimum Purchase:
- 10 units
Description
Mersen ATDR series provides IEC 'no damage' protection to sensitive branch circuit components and small motors. This series has excellend cycling abillity for small motor loads!
Ideal for small motors, contactors, lighting, heating and branch circuit protection.
Features Include:
- Rated Voltage AC UL: 600 V
- Rated Voltage DC UL: 300 V
- Amp Rating: 5
- ROHS Compliant: Yes
- Fuse Class: Class CC
- Speed/Characteristic: Time Delay
- Mounting: Clip
- Connection/Terminal Material: Tin-Plated Copper
- Connection/Terminal Type: Ferrule
- Body/Insulating Material: GMG

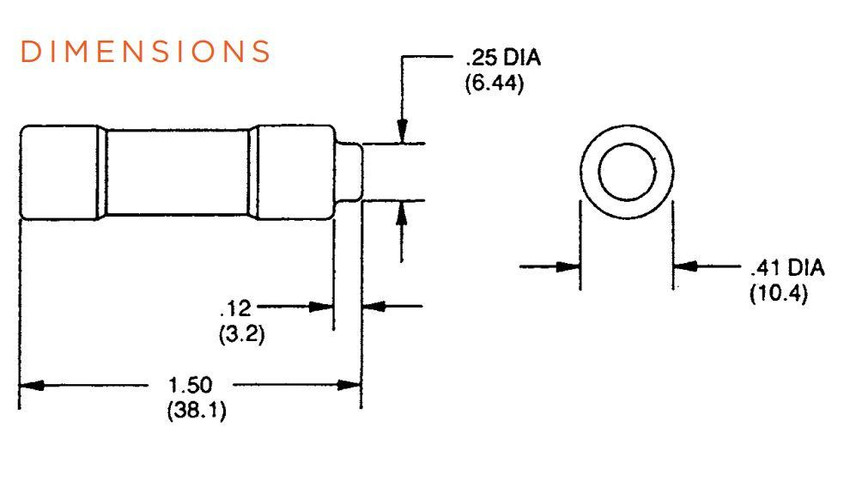

- Diameter: 0.41 in
- Length: 1.5 in
