Pfannenberg
-
11666104050
Alternate Part Number:
116 6610 4050, PF 66000 Filterfan 4.0
$457.50
In stock
1 Available
Filterfan, NEMA 12, 230VAC, 462 CFM, RAL 9011 Black, Grill Size 6, 12.6 x 12.6 x 6.18 (HWD), (291 x 291mm Cut-Out Dimensions), PF 66000 Filterfans 4.0™
We currently offer a small offering of our most popular Pfannenberg products online. Marshall Wolf Automation is an authorized Pfannenberg distributor and can get you the entire line.
Please fill out our Quick Quote form for pricing and delivery on any product you do not see online. Thank you!
| Part Number | 11666104050 |
|---|---|
| SKU | 11666104050 |
| Alternate Part Number | 116 6610 4050, PF 66000 Filterfan 4.0 |
| Manufacturer | Pfannenberg |
| Housing/Enclosure | NEMA 12 (IP55) |
| Voltage | 220/240VAC |
| Filterfan Size | Size 6 (291 x 291mm) |
| Availability | Please Contact Us |
| Product Series | PF 6xxxx FilterFan 4.0 |
| Watts | N/A or See Spec |
| Weight - lbs. | 7.000000 |
| Base Unit of Measure | Each |
Features Include:

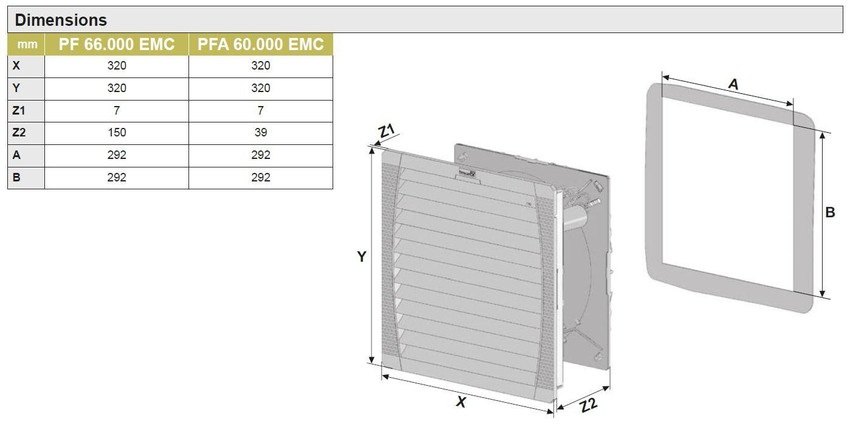

- Cut Out Dimensions (HxW)3 in (mm): 11.50 x 11.50 (292 x 292)
- Rated Voltage: 115V, 230V
- Installation size 6, airflow rate up to 785 m³/h
- 2 performance classes, cut-out compatible
- Secure contact with the housing wall via contact springs
- System of protection IP 54 and IP 55, NEMA type 12
- UR and UL approval
- UV resistance (IP 55 version)
- Cut-out compatible to installation size 6 of the 3rd and 4th Generation
