Boxco
-
BC-CGS-2202
$12.52
In stock
12 Available
Enclosure, PB/Switch Box, Ø22mm, Polycarbonate, 2 Hole, 3.15W x 5.12L x 2.76H", -40°C-120°C (-40°F-248°F)
These enclosures can generally ship in 1 to 2 days!
Boxco offers a number of cost-effective enclosure options:
P-Type - hinge and latch type, non metallic
- Molded hinge and SUS latch
- Dust/water proof - IP66/67, NEMA 4X/6
- Available in four options:
- ABS/gray cover: -AGP
- ABS/transparent cover: -ATP
- Polycarbonate/gray cover: -CGP
- Polycarbonate/transparent cover: -CTP
- Available back panel in steel 1.6mm (ST) or plastic 3mm (P)
- Mounting brackets, draw latch lock and waterproof lock available
- Polycarbonate models have excellent UV resistance
- RoHS, UL CE
S-Type - screw bolt type, non metallic
- Lift off screw cover and smooth side walls
- IP66/67, NEMA 4X/6
- Available in four options:
- ABS/gray cover: -AGS
- ABS/transparent cover: -ATS
- Polycarbonate/gray cover: -CGS
- Polycarbonate/transparent cover: -CTS
- Available back panel in steel 1.6mm (ST) or plastic 3mm (P)
- Mounting brackets, draw latch lock and waterproof lock available
- Polycarbonate models have excellent UV resistance
- RoHS, UL CE
M-Type - screw bolt type, non-metallic w/ lower center space for membrane keypad
- Dust/water proof - IP66/67, NEMA 4X/6
- Available in four options:
-
- ABS/gray cover: -AGM
- ABS/transparent cover: -ATM
- Polycarbonate/gray cover: -CGM
- Polycarbonate/transparent cover: -CTM
- Available back panel in steel 1.6mm (ST) or plastic 3mm (P)
- Polycarbonate models have excellent UV resistance
- RoHS, UL CE
Q-Type - hinge and latch type, all plastic (hinge, latch)
- Plastic hinge, plastic latch
- IP67
- Available in four options:
-
- ABS/gray cover: -AGQ
- ABS/transparent cover: -ATQ
- Polycarbonate/gray cover: -CGQ
- Polycarbonate/transparent cover: -CTQ
- Available back panel in steel 1.6mm (ST) or plastic 3mm (P)
- Mounting brackets, draw latch lock and waterproof lock available
- Polycarbonate models have excellent UV resistance
- RoHS, UL CE

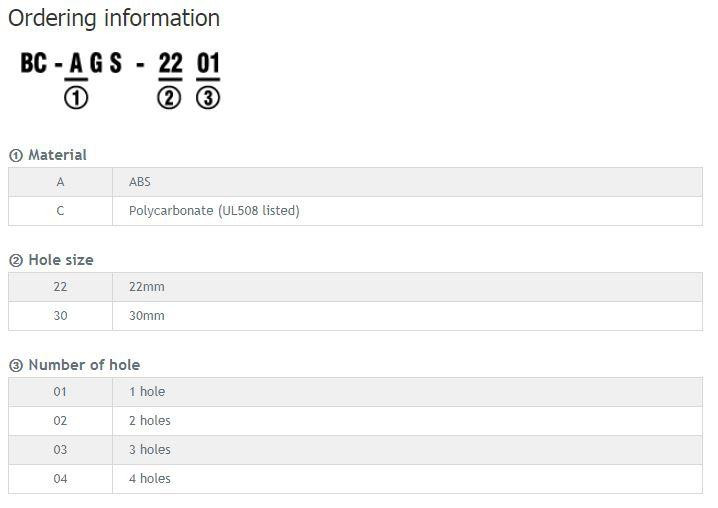

| Part Number | BC-CGS-2202 |
|---|---|
| SKU | BC-CGS-2202 |
| Manufacturer | Boxco |
| Enclosure Type | Pushbutton Enclosure |
| Material | Polycarbonate |
| Ratings | IP66, IP67, NEMA 4X |
| Product Series | S-Type Series |
| Availability | Standard Stock |
| Weight - lbs. | 0.500000 |
| Base Unit of Measure | Each |
Features Include:
Protection Level
- IP66/67, IK07/08
Technical
- Smooth sidewalls
- Standard or quick turn screws
- Integrated cover retainer
Certification
- UL508 on Polycarbonate products
Temperature range
- ABS: -40°C to 86°C (-40°F to 185°F)
- Polycarbonate: -40°C to 120°C (-40°F to 248°F)
- UL94-V-0~5VA(Gray) Non-Flammable
