Available Now! DPB01CM48
DPB01CM48
DPB01CM48
Available Now! (4 in stock)
Carlo Gavazzi

DPB01CM48

$160.65

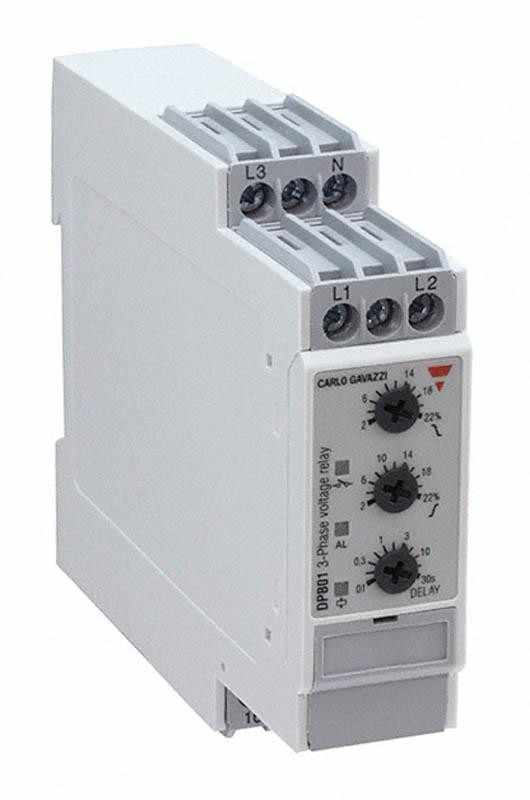

Monitoring Relay, 3-Phase+N, 380-480VAC, 8A, SPDT, DIN Rail Mount

Minimum Purchase:
1 unit
Adding to cart… The item has been added
If you do not see the green 'in stock' circle on this item, Carlo Gavazzi is quoting 12 to 14 weeks for new orders (items may arrive sooner from our existing stock orders). We are happy to offer similar items with shorter lead times or from stock!
DPB01CM48
DPB01CM48
DPB01CM48
DPB01CM48
Description
Monitoring Relay, 3-Phase+N, 380-480VAC, 8A, SPDT, DIN-Rail Mount

Features Include:

  • TRMS 3-phase over and under voltage, phase sequence and phase loss monitoring relays
  • Detect when all 3 phases are present and have the correct phase sequence (except for N versions)
  • Available versions (W4) supplied between phase and neutral
  • Detect if all the 3-phase-phase or phase-neutral voltages are within the set limits
  • Upper and lower limits separately adjustable
  • Measure their own power supply
  • Selection of measuring range by DIP-switches
  • Adjustable voltage on relative scale
  • Adjustable delay function (0.1 to 30 s)
  • Output: 8 A SPDT relay N.E.
  • For mounting on DIN-rail in accordance with DIN/EN 50 022 (DPB01) or plug-in module (PPB01)
  • 22.5 mm Euronorm housing (DPB01) or 36 mm plug-in module (PPB01)
  • LED indication for relay, alarm and power supply ON
Accessories
!
✓
