Description
DC Drive, 10-15/18-54VDC In, Open Loop, 8A Cont, Frwd/Rev Direction Control, NEMA 4X
Features Include:
- Microprocessor-based design
- Digital closed-loop algorithm accuracy of ±1/2 RPM of set speed or equivalent
- Non-volatile memory maintains drive settings on power loss
- Factory or field programmable via front-panel keypad
- Control profile settings include MIN and MAX speed, ACCEL, DECEL, display units, and more
- Programming lockout feature
- Transient voltage protection
- Self-contained power supply for speed pickups
- Large 4 digit, 1/2” LED display

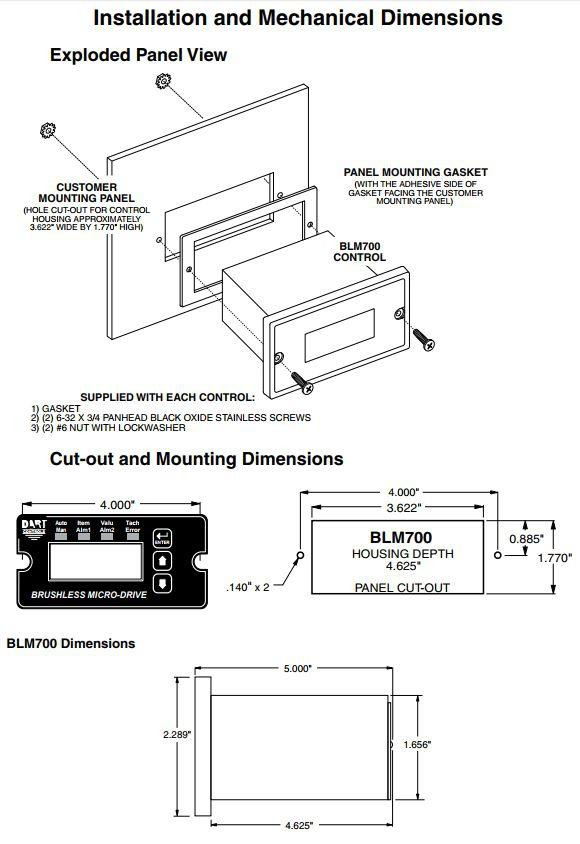

- Durable NEMA 4X rated aluminum housing with Polycarbonate membrane and gasket
- Ambient temperature range of -10°C to 45°C
- Multiple operating modes including:
- Master, Rate Mode – Controls in rate unit such as RPM, Gallons per Minute, etc.
- Master, Time Mode –Controls in time unit such as HH:MM, MM:SS, SS:TT, or other unit
- 60 or 120 Hall Sensor spacing - jumper selectable
- Forward or Reverse rotation of motor is jumper selectable
