In stock

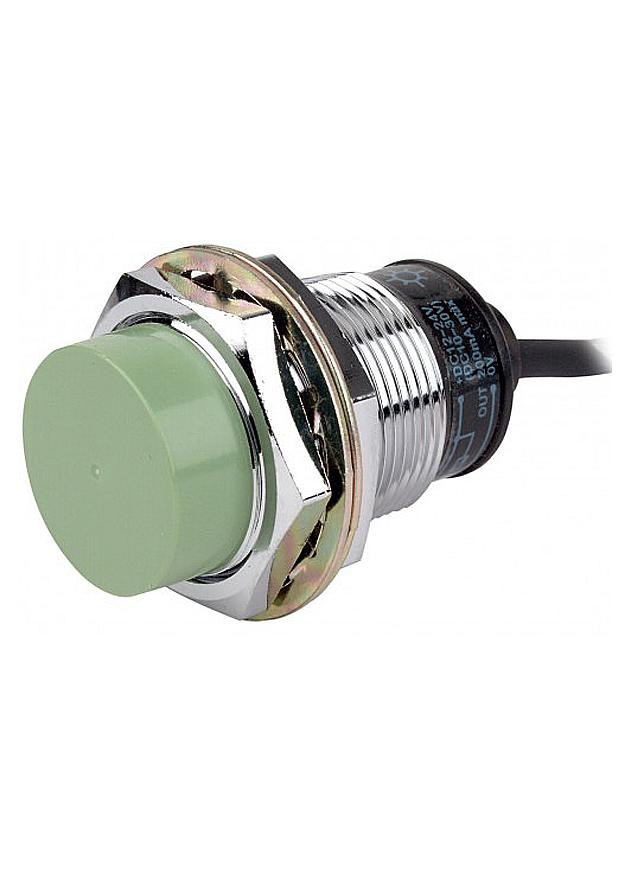

Capacitive Proximity Sensor, 30mm, DC, NC, NPN 3 Wire, 10-30VDC, 15mm Range

Our Autonics CR series is an extremely cost effective line of capacitive proximity sensors.

This series makes it easy to adjust the sensing distance with built-in sensitivity adjustment volume. Capacitive proximity sensors will detect metallic and non-metallic materials including plastic, water, stone and wood.

Marshall Wolf Automation is your authorized Autonics distributor!

More Information
Part Number CR30-15DN2
SKU CR30-15DN2
Size 30mm
NO/NC Normally Closed (NC)
Voltage DC
NPN or PNP NPN (Sink)
Product Series CR Series
Material Nickel Plated Brass
Ratings IP65
Availability Please Contact Us
Weight - lbs. 0.5000
Base Unit of Measure Each

Features Include:

  • Able to detect Iron, metal, plastic, water, stone, wood, etc.
  • Long life cycle and high reliability
  • Easy to adjust the detecting distance by sensitivity adjustment potentiometer
  • Applications to control level and position

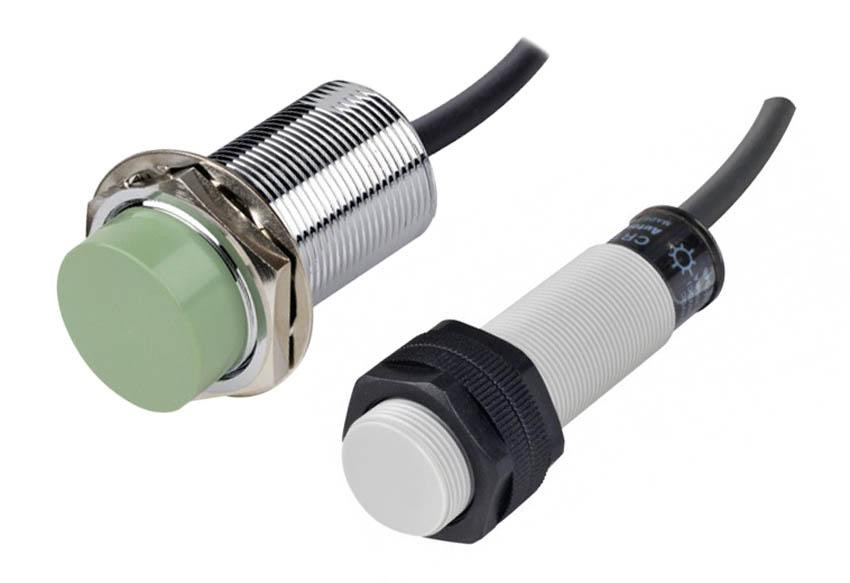

  • Size: 18mm or 30 mm
  • 18mm is plastic housing, 30mm is nickel-plated brass
  • Non-flush shielding
  • 3-wire DC or 2-wire AC models
  • Normally open or normally closed
  • 3-wire DC available NPN or PNP
  • Adjustable sensitivity
  • Detecting distance to 15mm
  • LED indication of output status
  • 2 meter cable
  • IP66 (18mm) or IP65(30mm)
