Our Teco F510 series has many enhanced features, including:
Upgraded CPU design on control board
Frames 2 through 5 will have a DC bus connection P1/P2 added for customers to install a DC reactor - these models include 230V and 460V, 5 to 50hp
Expansion slot for optional I/O and communication cards
Ability to power on control board with 24VDC optional expansion card Removable control wiring terminal strip

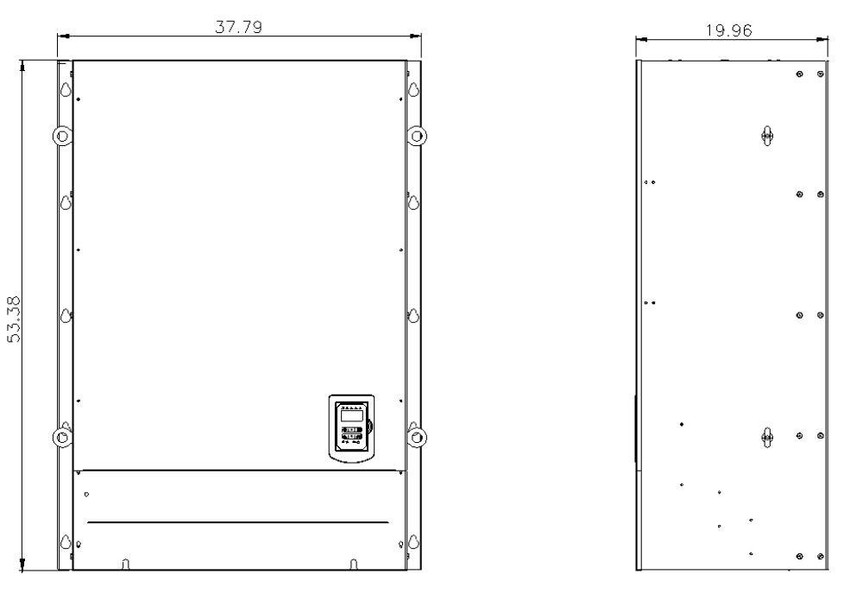

Reduction in physical frame size (see tech note under 'Documents')
The F510 series a fan and pump AC Drive that is easily configured and will control almost any application involving fans, blowers, and centrifugal pumps. It comes standard with a simple-to-select preset application parameter for commonly applied fan and pump applications.
This drive is designed to regulate up to four pumps to operate at optimum efficiency with an optional card for control of up to 8 pumps. With easy plug and play technology this drive was designed for high functionality in the following industries and applications:
Wastewater industries, cooling towers, industrial pumping, irrigation and many more!
Additional Features Include:
3 phase, available in 230 or 460V2 analog output Pulse input and pulse output signals230VAC, 5 to 150 hp (14.5 to 400 Amps) 460VAC, 5 to 250 hp (9.2 to 328 Amps)
Controls induction or permanent magnet motors
Variable torque drive
F510 drives have a standard RS485 port with RTU Modbus Metasys and BACNet protocols
Optional card for Profibus Communications is available (JN5-CM-PDP)
F510 drives include a standard LCD keypad
Optional LED keypad is available (JN5-OP-F01)
NEMA adapter kits are available for larger size drives that are built as IP00 units
In 2020 the F510 series added new features and switched to a -UE version (was -U) .
LED Remote Keypad, Optional; Use with A510/F510 Drives, Requires Cable Sold Separately (JN5-CB-xxM), A510/F510 Drives Include Standard LCD Operator Keypad.
