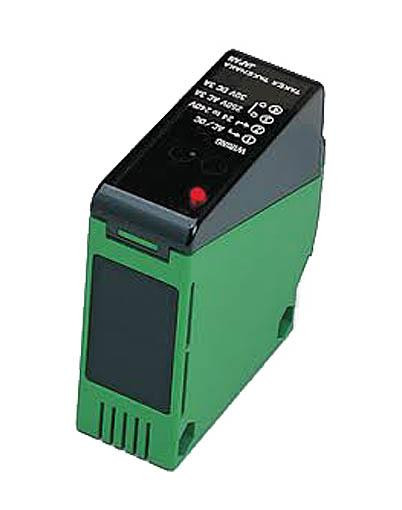

NA-R10F

Features Include:

• Detection method: Diffuse reflector
• Detecting distance: 1m or less (200×200mm white drawing paper)
• Detection object: Opaque translucent
• Power supply: 24-240VAC/DC ±10% 50/60Hz
• Power consumption: Transmitter : 2 W or less, Receiver : 2 W or less
• Output mode: Relay output 1a / Ratin : 3 A, 250 VAC or less 30 VDC or less : resistive load
• Operation mode: Light ON/Dark ON selectable, Timer function selectable, Selectable between on-delay, off-delay, one-shot and timer disabled (with switch), Delay time: 0.1-5 s
• Response time: 10ms or less
• Operating angle: 30°(at receiver)
• Light source (wavelength): Infrared LED (880 nm)
• Indicator: Transmitter : Operation indicator (orange LED), Receiver : Operation indicator (orange LED)
• Switch (SW): Light ON/Dark ON selector switch
• Material: Lens: acrylic / Case: heat resistant ABS / Cover: acrylic
• Connection: Terminal block (Screw: M3.5)
• Weight: Transmitter : Approx. 170g
• Receiver : Approx. 170g
