IDEC is now offering 5-port and 8-port unmanaged industrial Ethernet switches that are ideal for a wide range of applications, including hazardous!
These Ethernet switches have a wide operating voltage and operating temperature. A compact, rugged metal housing makes them compatible for Class 1, Division 2 hazardous locations that require and IP30 rating.
If you are connecting two or more things together over Ethernet (PLC, HMI, laptop, etc.) you will need an Ethernet switch.
Compact Unmanaged Industrial Ethernet Switch
8-port or 5-port models, 10/100 Mpbs
Operating temperature: -40 to +75°C (no freezing)
QoS Function (8 port switch only)
IGMP Snooping Function (8 port switch only)
Broadcast Storm Protection
Redundant Power Inputs
Auto MDI/MDIX function
IP30, rugged metal housing
cULus, CE, Class I, Division 2
SX5E-HU085B is an 8-port

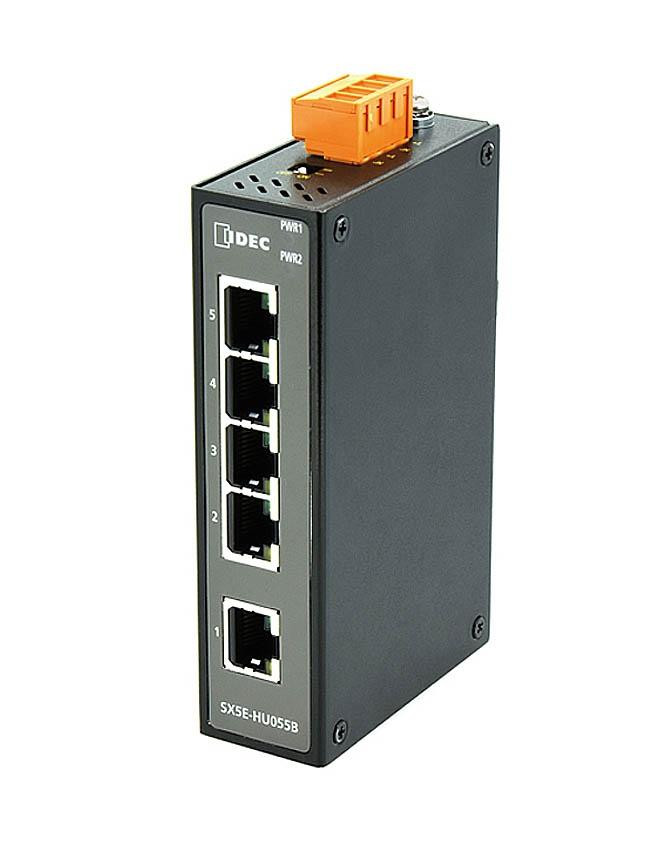

SX5E-HU055B is a 5-port

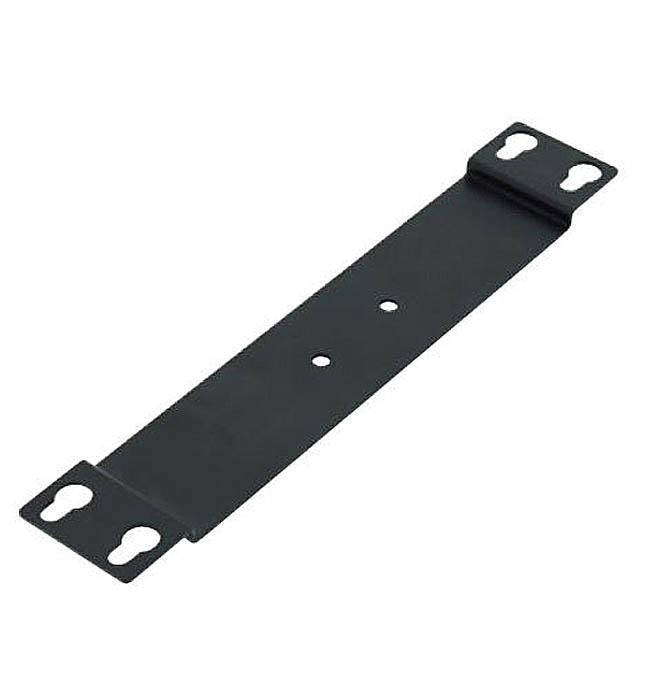

Mounting bracket is SX9Z-IA01
Marshall Wolf Automation is your authorized IDEC distributor!
SX5E Features Include:
Compact Unmanaged Industrial Ethernet Switch
5-port 10/100 Mbps
Wide Operating Voltage range: 9-60V DC, 18-30V AC
Wide Operating Temperature range: -40 to +75 ÀöC
